Omni Console / Keypad

Wiring is 2 x 4 core or 1 x 8 core - 4 are used for the main connection to the Omni board and 4 for mic and speakers.

If you have more than one console then all consoles connect to the same place - red black yellow green as below.

If multiple consoles you need to configure each Console with a unique address:

Press 4 and up arrow simultaneously untill it beeps,
enter number and press hash
press 4 and up arrow again to accept

Model 33A00-4 Omni LCD Audio Console w/ Speaker and Microphone

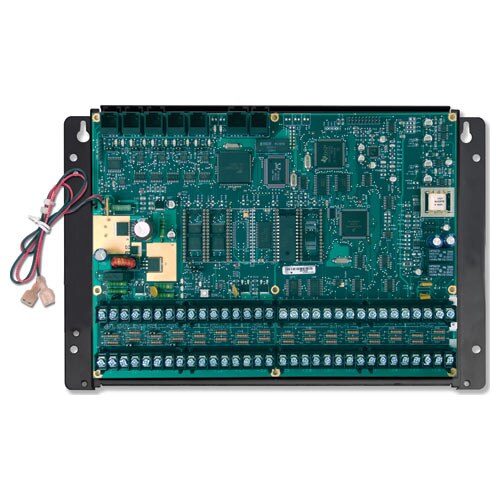

Omni Pro Connections
Connections for speaker and microphone to the Two-Way Audio/Voice alarm module

Click here for full manual

Hai Omnipro 2 Installation Manual

Hai Omni Pro 2 User Manual 1 3

Jun 03, 2011 Omni Console / Keypad Wiring is 2 x 4 core or 1 x 8 core - 4 are used for the main connection to the Omni board and 4 for mic and speakers. If you have more than one console then a ll consoles connect to the same place - red black yellow green as below. Page 2 OVERALL DESCRIPTION Console Operation The console is designed with everything that is necessary for you to program and operate your OmniPro II control and security.
