Bluetooth speakerphone use with your car stereo, Features and specifications, Reasons to choose the jabra sp700
86 detailed instruction manuals and user guides of exploitation for Jabra. Read manuals online, free without registration. Instruction manuals and user guides for Jabra. Accessories communication. Audio accessories. SP700 2 manuals: Bluetooth speakerphone use with your car stereo, Features and specifications.
Freephone customer support numbers:
Denmark
Phone: 70252272
E-mail: support.no@jabra.com
Finland
Phone: 00800 722 52272
E-mail: support.no@jabra.com
Italy
Phone: 800 786543
E-mail: support.it@jabra.com
Norway
Phone: 800 61272
E-mail: support.no@jabra.com
Spain
Phone: 900 984 542
E-mail: support.es@jabra.com
Sweden
Phone: 020792522
E-mail: support.no@jabra.com
UK
Phone: 0800 0327026
E-mail: support.uk@jabra.com
Play calls and music from your mobile phone on your car stereo
•
via FM and Bluetooth transmission
Easy to operate – gives spoken information in 10 languages*
•
Background noise reduction and echo cancellation via DSP
•
technology
Night Driving Mode – no interfering lights while driving at night
•
Auto off – saves battery
•
Up to14 hours talk time & up to 255 hours standby
•
Lightweight - weighs 85 grams (3 oz.)
•
L127mm x W62mm x D17mm (L 5.0 x W 2.4 x D 0.7 in)
•
Auto-pairing for no-nonsense start up
•
Features Answer/end calls, Reject calls**, Voice dialling**,
•
Last number redialling**, Mute
Bluetooth 2.0 with A2DP***
•
Comes with USB charger, Car charger (CLA) and Visor clip
•
Jabra Sp700 Manual
*
UK English, US English, Russian, French, Italian, German, European Spanish,
Mexican Spanish, Brazilian Portuguese, Chinese
** Phone dependent
*** An A2DP enabled phone is required to transfer music from phone to stereo
Features and Specifications
Datasheet_M04_S
P700_01_04/08
www.jabra.com

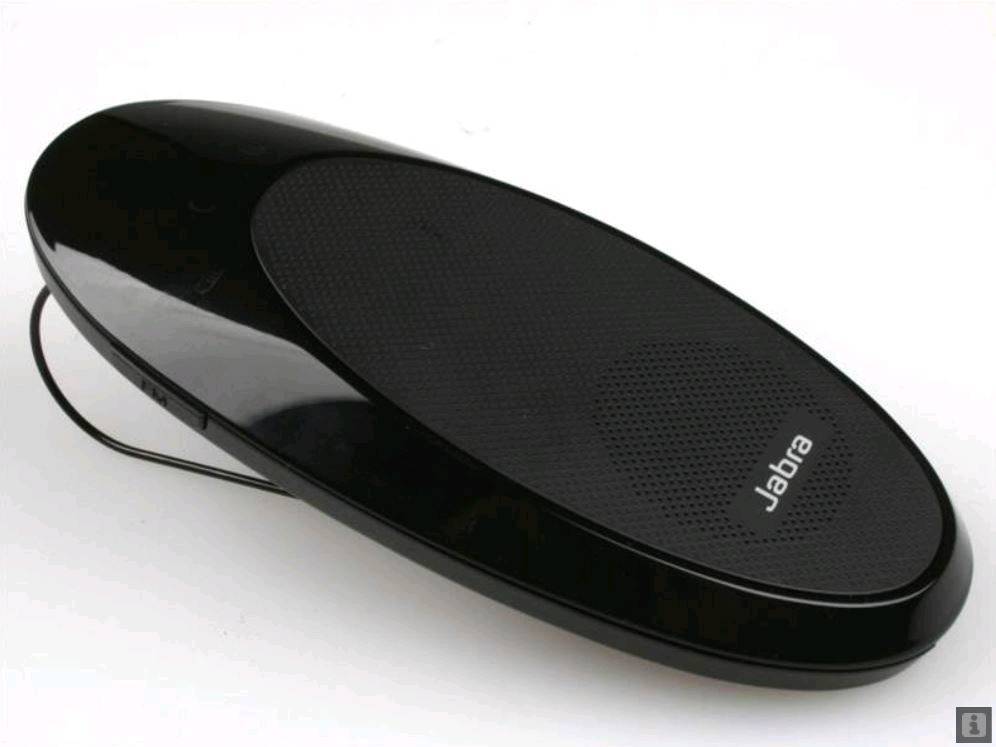

Jabra SP700
The smart way to drive
Plays calls and music on your car stereo. Easy to operate.
No installation necessary. Noise reduction & echo cancellation.
Reasons to choose the JABRA SP700
Bluetooth
speakerphone
Use with your
car stereo
via FM transmitter
JABRA
®
IS A REGISTERED TRADEMARK oF GN NETCoM A/S
WWW.JABRA.CoM
© 2008, GN Netcom A/S. All rights reserved. Jabra® is a registered trademark of GN Netcom A/S. All other
trademarks included herein are the property of their respective owners. The Bluetooth® word mark and logos
are owned by the Bluetooth SIG, Inc. and any use of such marks by GN Netcom A/S is under license. (Design and
specifications subject to change without notice)
+
-
Jabra Sp700 Bluetooth Speakerphone User Manual Instructions
The smart way to drive
Quick start guide
Charge your Jabra SP700
Insert charger and remove when fully charged. The speakerphone
is fully charged when battery indicator turns green.
Turn on your Jabra SP700
Press Answer/End button for 2 seconds to turn on.
Press Answer/End button for 4 seconds to turn off.
Pairing the Jabra SP700 with your phone
The first time you turn on the speakerphone it will automatical-
1.
ly be in pairing mode. To enter pairing mode subsequently, turn
off SP700 and press the Answer/End button for 5 seconds.
Release the button when the Bluetooth Status Icon begins to
2.
flash quickly and you hear a voice announce: “Pairing mode”.
Activate the Bluetooth function on your phone and set the
3.
phone to “discover” the speakerphone SP700.
Confirm with PIN code = 0000 (4 zeros).
4.
Using the Jabra SP700
Press the Answer/End button to answer or end a call.
Tap Volume Up/Volume Down keys to adjust the volume.
Using SP700 with your car stereo
The FM transmitter in the speakerphone allows you to transmit
calls and music from your mobile to the car stereo.
Connect your mobile and your speakerphone.
1.
Press the FM button to enter FM mode. The FM Status Icon will
2.
turn solid red and a FM frequency will be announced.
Manually turn your radio into the same FM frequency and you
3.
are now ready to transmit calls and music from your phone to
your car stereo.
Place the Jabra SP700 in your vehicle
Use the supplied clip to attach the SP700 to your car’s sun visor.
Jabra offers the latest in speakerphone technology – the SP700.
With the SP700 you can play Bluetooth music and calls on your car
stereo with no installation needed. SP700 offers the same high
quality sound as expensive built-in solution without any wiring or
installation necessary.
Jabra SP700 offers a new level of usability and safety for
Bluetooth speaker phones. With the SP700, you’ll receive spoken
information so there’s no need to take your eyes off the road while
you drive. Automatic pairing makes getting started simple. The
SP700 features advanced noise reduction and echo cancellation
that insures excellent sound quality on both sides of the call.
The SP700 keeps up Jabra’s speaker phone heritage offering a
classic slim line design that easily blends in with your car’s
interior. Pair SP700 with your mobile phone and place it on the
sun visor – it’s really that simple.
1) Answer/end button, On/off
button
Press or hold button to activate
2) Volume Up/Down button
Press to adjust volume
3) FM button
Press to enter FM transmission mode
Jabra Bluetooth Speakerphone Instructions
4) Charging socket
Easy charging with USB and CLA
power supply provided
5) Status icons (LED)
Shows status on Battery, Calls,
Bluetooth Connection and FM
transmission
6) Speaker
For powerful and clear sound quality
7) Microphone
For optimized sound quality in
receiver end
6
5
7
1
3
4
2
